E. & H.T. Anthony & Co.

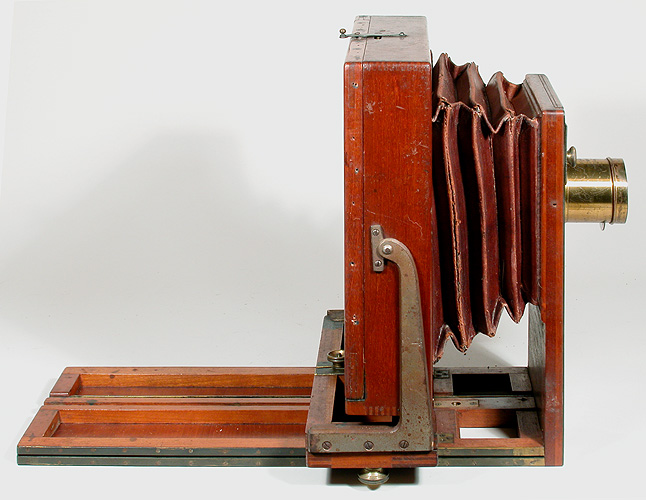

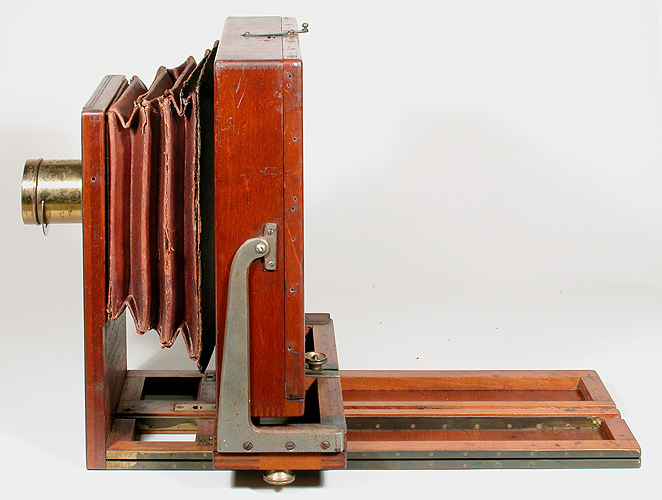

Success Compact View, Variation 3



American Optical Co. (Scovill Mfg. Co.) Wet Plate Holder

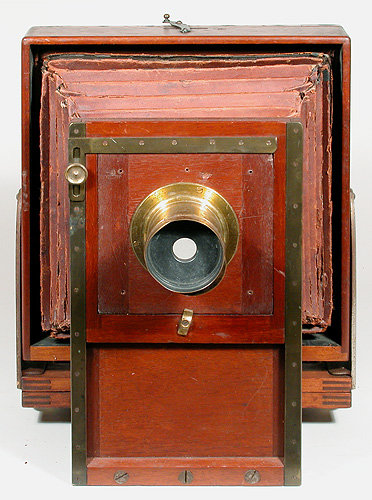

Close-up of the Darlot Single Achromat Lens Variation 2


Date Introduced: - ; Years Manufactured: c.1880
Construction: rear focus via push-pull with fine focusing screw; single swing
Materials: mahogany body, cherry base, red leather bellows, brass and nickeled brass hardware
Sizes Offered: P=4¼x6½; Q=6½x8½; R=8x10; S=10x12; T=11x14; U=14x17; V=17x20

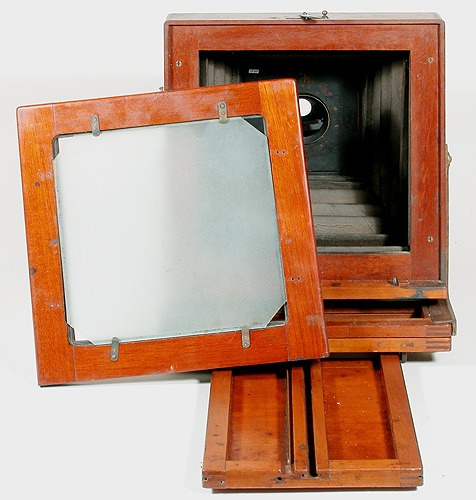

Notes: The example above has a fine focus screw (although it is missing), brass guides on bed sides.  The nickeled swing hardware took a number of profiles over the years, slender (like these) or thicker, with curved edges.  This camera is without the little front compartment of the Success Compact View, Variation 2.
